1/4" 100R2AT Hydraulic Hose High Pressure Resistant Against For Mining / Drilling

Product Categories

Shaanxi Kelong New Materials Technology Co., Ltd.

Contact Now

Name: 14quot 100R2AT Hydraulic Hose High Pressure Resistant Against For Mining Drilling
Brand: Kelong
Price: 1 USD

Brand Name : Kelong

Model Number : SAE 100 R2 AT

Certification : ISO9001 / IRIS

Place of Origin : China

Payment Terms : L/C, T/T, Paypal

Supply Ability : 16,5600 meters /months

Delivery Time : 7-15 days

Name : High Pressure Hydraulic Hose

Tube : Synthetic rubber, resistant against hydraulic fluids

Cover : Abrasion and ozone resistant synthetic rubber

Temperature range : -40°C to 121°C / -40°F to +249.8°F

Reinforcement : One or Two braids of high tensile steel wire

Note : Various covers available

Applications : Petroleum Based Hydraulic Oil

Contact Now

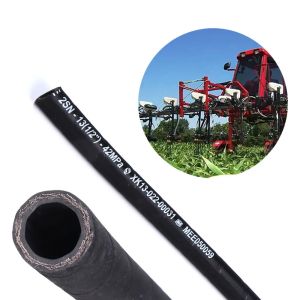

1/4" Hydraulic Hose 100R2AT

Applications:

1/4" 100R2AT Hydraulic Hose High Pressure Resistant Against For Mining / Drilling

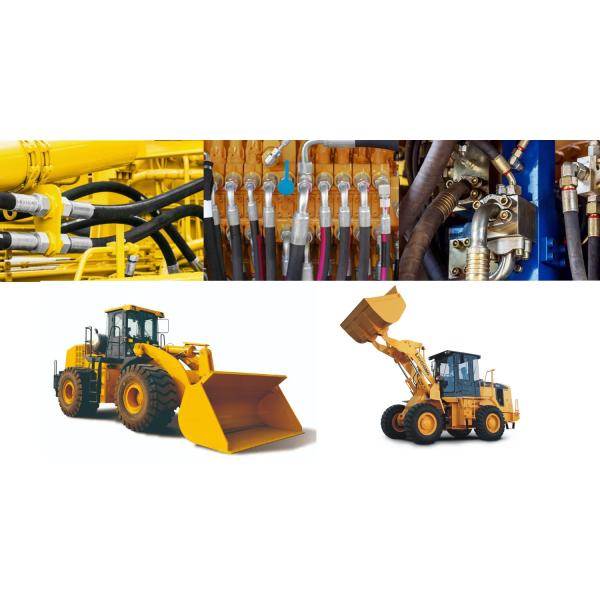

Hydraulic Hose 100R2AT are particularly suitable for the following areas of applications:

* Heavy equipment and earth-moving machinery

* Mining and drilling

* Agricultural machines and equipment

* Working platforms, cranes and lifting

* Marine and off-shore

* Naval Construction

* Machine tool industry, automatic machines and industrial plants

* Wood machinery, marble and sheet metal machining

Specification
Hose size nominal inner diameter(in)	Outside diameter (mm)			Working pressure (MPa)		Breaking pressure(MPa)		Min.ben d radius (mm)
	A(2ST)		AT(2SN)	type: A/AT	type: 2ST/2SN	type: A/AT	type: 2ST/2SN
	MIN	MAX	MAX	type: A/AT	type: 2ST/2SN	type: A/AT	type: 2ST/2SN
3/16	15.1	16.7	14.1	35	41.5	140	165	90
1/4	16.7	18.3	15.7	35	40	140	160	100
5/16	18.3	19.8	17.3	29.7	35	118.8	140	115
3/8	20.6	22.2	19.7	28	33	112	132	125
1/2	23.8	25.4	23.1	24.5	27.5	98	110	180
5/8	27	28.6	26.3	19.2	25	76.8	100	205
3/4	31	32.5	30.2	15.7	21.5	62.8	85	240
1	38.5	40.9	38.9	14	16.5	56	65	200
1'1/4	49	52.4	49.6	11.3	12.5	45.2	50	420
1'1/2	55.6	58.7	56	8.7	9	34.8	36	500
2	68.3	71.4	68.6	7.8	8	31.2	32	630
2'1/2	80.9	84.1	81.2	7	7	28	28	760
The above are common specifications, other sizes can be customized

Product catalog
Reinforcement	Number
One steel wire braided	SAE R1AT/DIN 1SN. SAE R1AT/DIN 1ST, DIN 1SNK DIN/EN 1SN WG, DIN 1SC, SAE R5, SAE 100R17
Two steel wire braided	SAE R2AT/DIN 2SN,SAE R2AT/DIN 2ST,DIN 2SNK,DIN 2SC
One/two wire braided	SAE R16
Four steel wire spiral	SAE R9AT, SAE R10 , SAE R12 ,DIN 4SP , DIN 4SH
High flexibility nylon or thermoplastic	SAE R7, SAE R8
